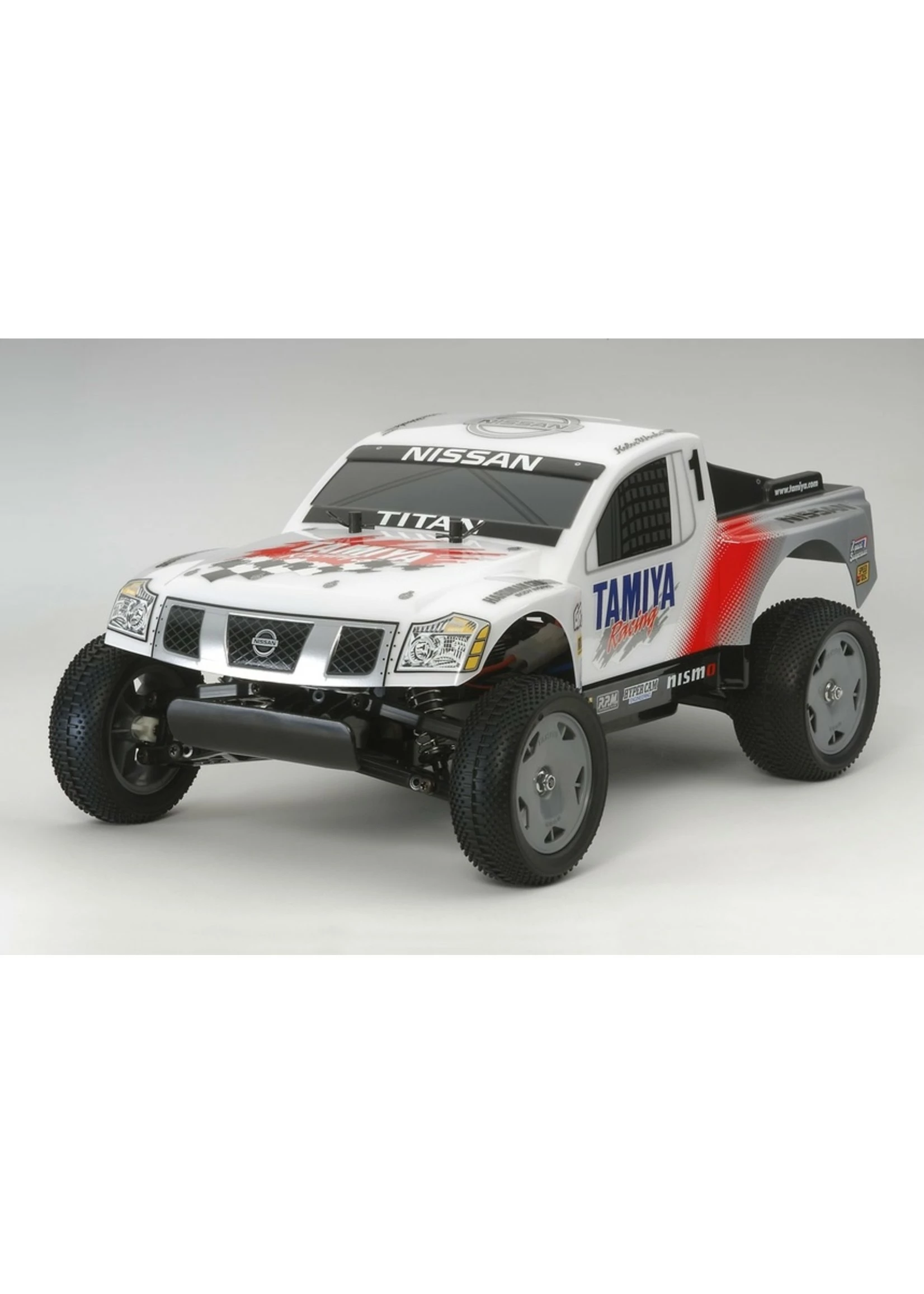

Tamiya 1/12 Nissan Titan Racing Truck – DT-02 Chassis Kit

This is an easy to build Nissan Titan truck kit. The body is mounted on the Tamiya DT-02 platform buggy chassis, which makes it ideal for any new hobbyist building a construction kit for the first time. The Nissan Titan body replicates the truck as it was raced in the 2006 Championship Off-Road Racing (CORR) season in the United States.

Rear-Wheel Drive DT-02 Paired with Dual Block Tires

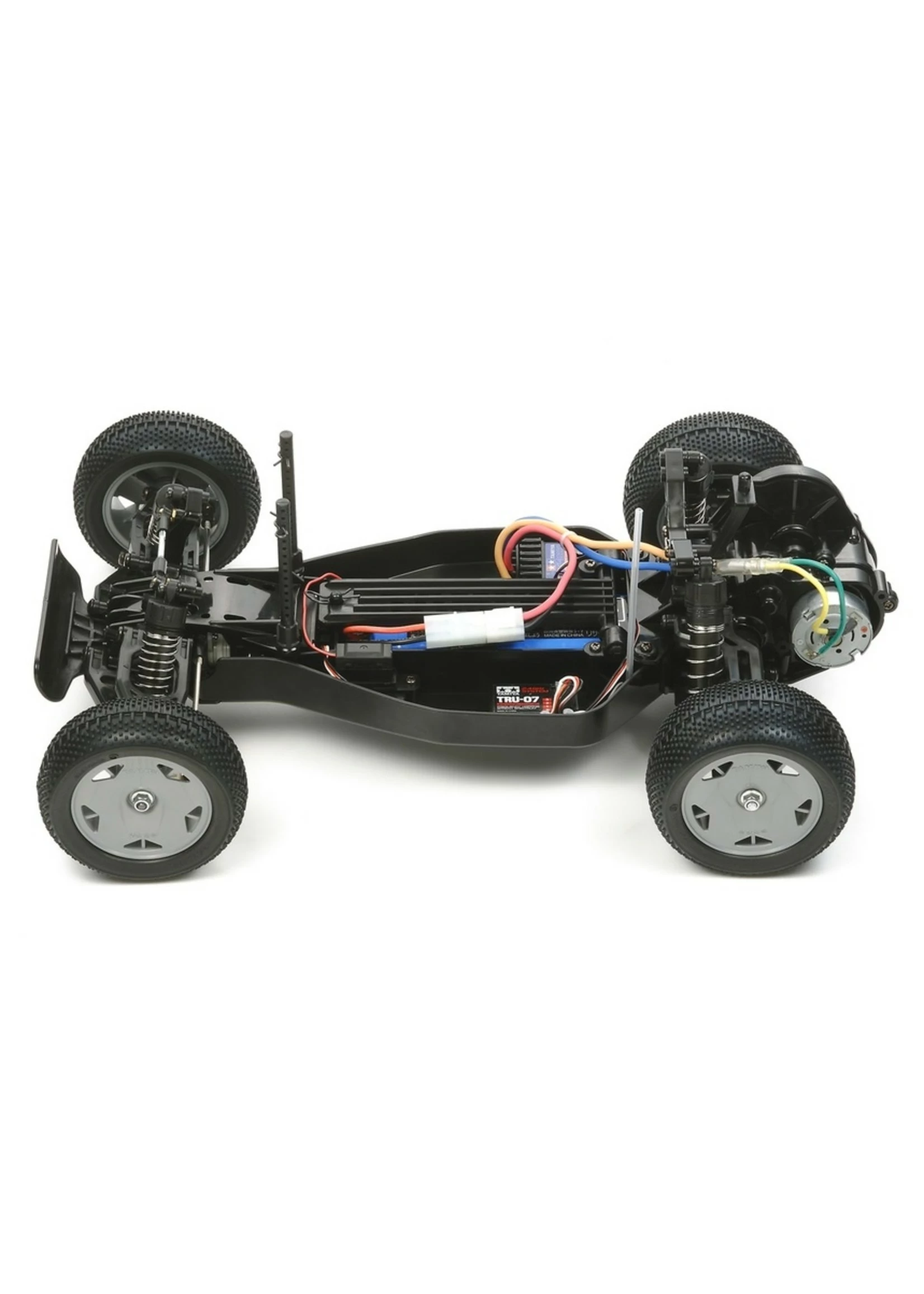

The DT-02 chassis bathtub type frame chassis features a longitudinal battery layout for lower center of gravity and optimum weight distribution. 4-wheel double wishbone suspension is equipped with CVA oil damper units to provide superb off-road traction. A sealed gearbox protects against dust and debris and is equipped with differential gears to ensure smooth cornering. Star-dish wheels are paired with dual block K tires front and rear to ensure that the model offers a dynamic drive.





Features:

• Scale: 1/12
• Length: 413mm, Width: 246mm, Height: 168mm
• Wheelbase: 263mm
• Tire Width/Diameter: 30mm/88mm (Front), 40mm/88mm (Rear)
• Tread (F/R): 215mm/206mm
• Rear-Wheel Drive
• 3-Bevel Differential
• 2-Piece Steering Tie-Rod
• F/R Double Wishbone Suspension
• Gear Ratio = 9.28:1
• Motor
• Electronic Speed Controller (included)

Specs:

Adjustable Gear Ratio: Fixed
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: DT-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 2WD
Led Light Buckets: no
Motor: 540-brushed type
Requires: A 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/12
Shock Damper: CVA Oil-filled damper
Special Feature 10: Tamiya TEU-104BK ESC included
Special Feature 7: Fully-enclosed gearbox protects against dirt and debris
Special Feature 8: Front and rear Dual Block Tires
Suspension: Fully Independent Double Wishbone
Terrain Use: Off-Road
