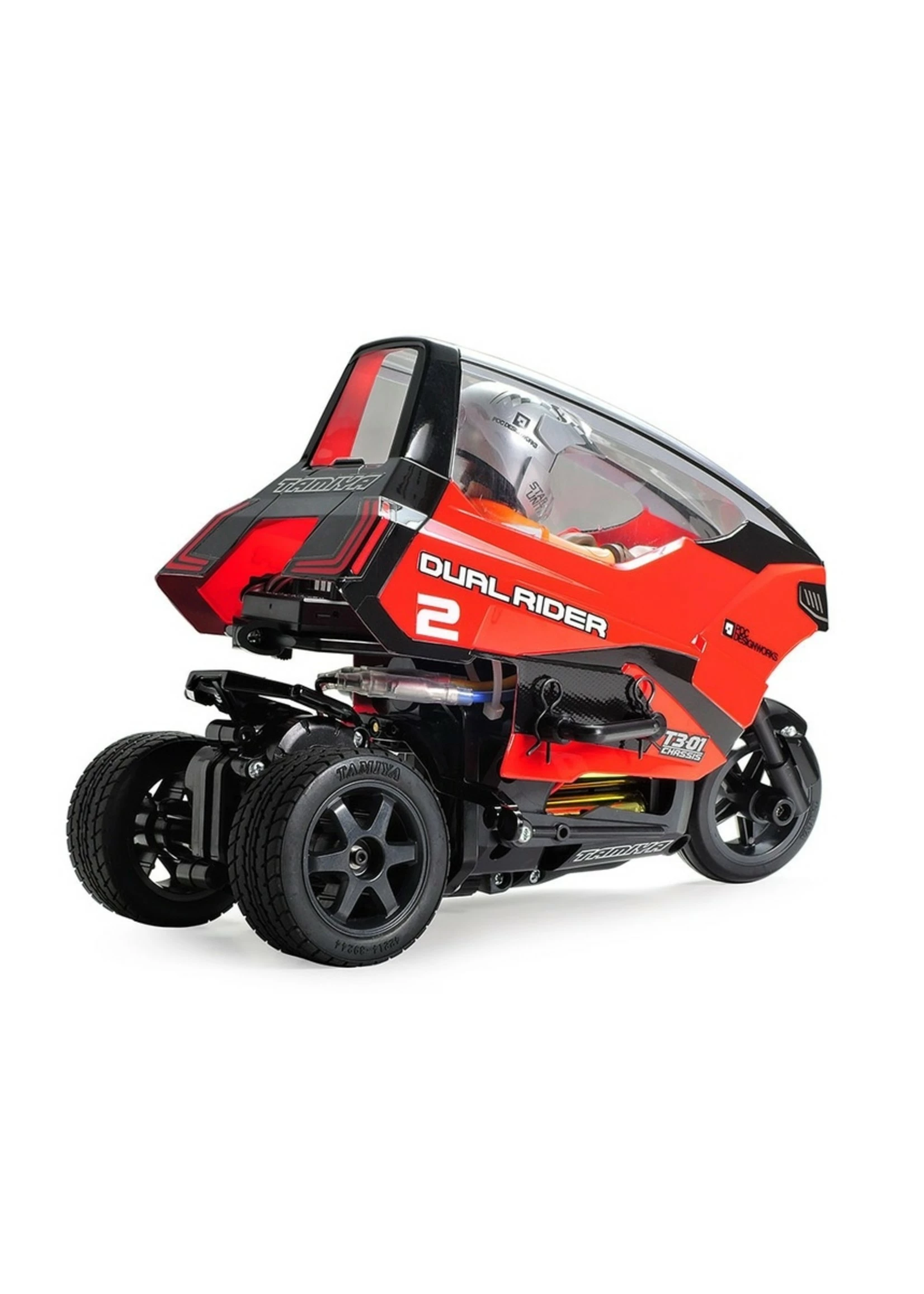

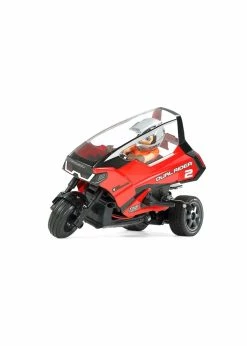

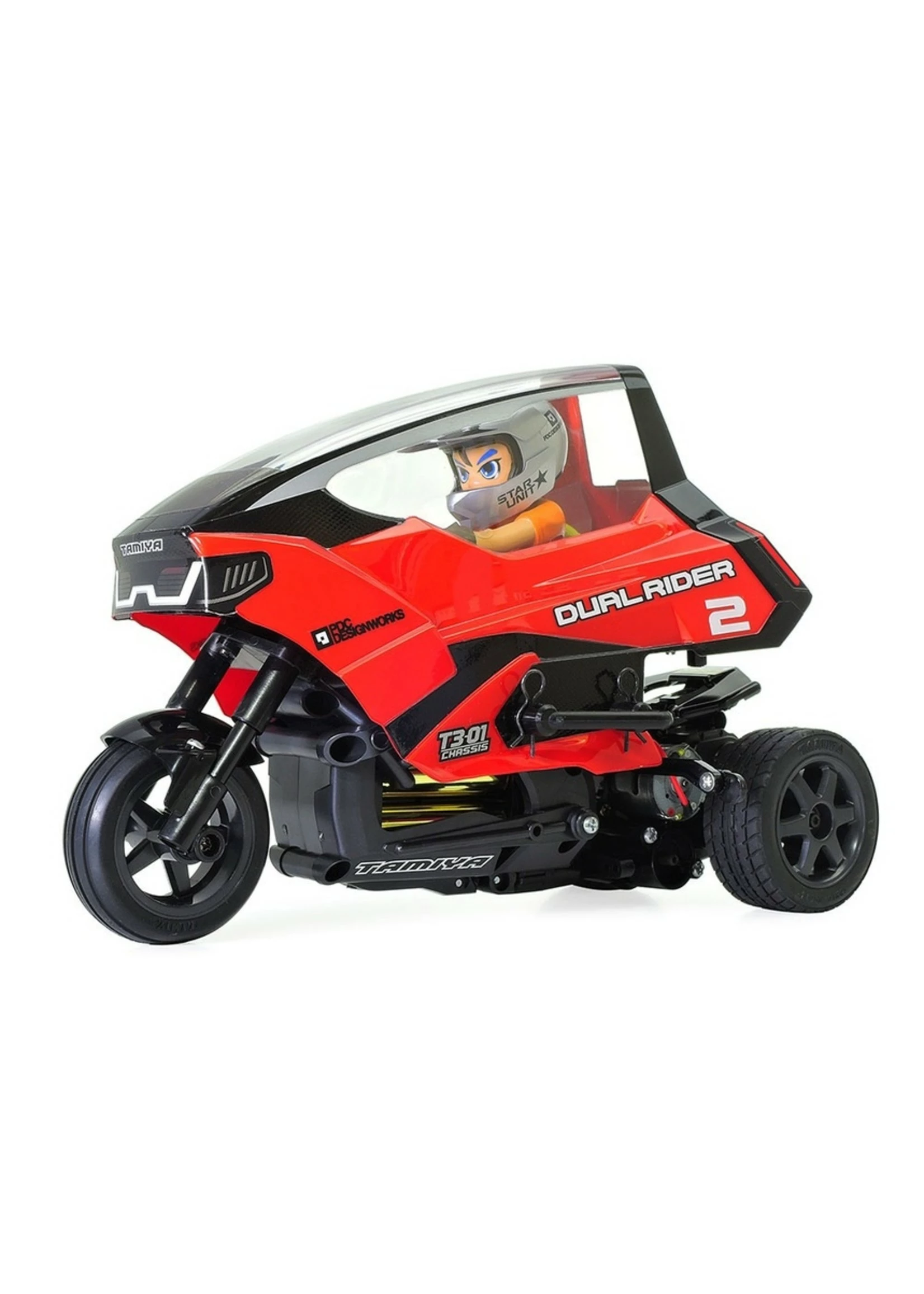

Tamiya 1/8 Dual Rider Trike – T3-01 Chassis Kit

Tamiya 57407 – 1/8 Dual Rider Trike – T3-01 Chassis Kit

This radio control model is the second on the Tamiya T3-01 chassis series. The body in this kit replicates a sleek, futuristic styling form. Furthermore, the included brand-new rider figure is highly detailed, which makes driving the T3-01 chassis more dynamic. When the model turns, the 3-wheel chassis “leans” into the corner much like their full-size counterparts. Furthermore, the 3-wheel chassis features the motor in the rear section, with the battery in the front. The two sections are linked in the middle, and a steering servo leans the entire front section left and right to effect turns. Furthermore, support arms are linked to the steering servo, and help to right the model if it happens to tip over.

Features:

• 1/8 scale R/C model assembly kit. Length: 260mm, width: 135mm, height: 185mm.Wheelbase: 196mm.

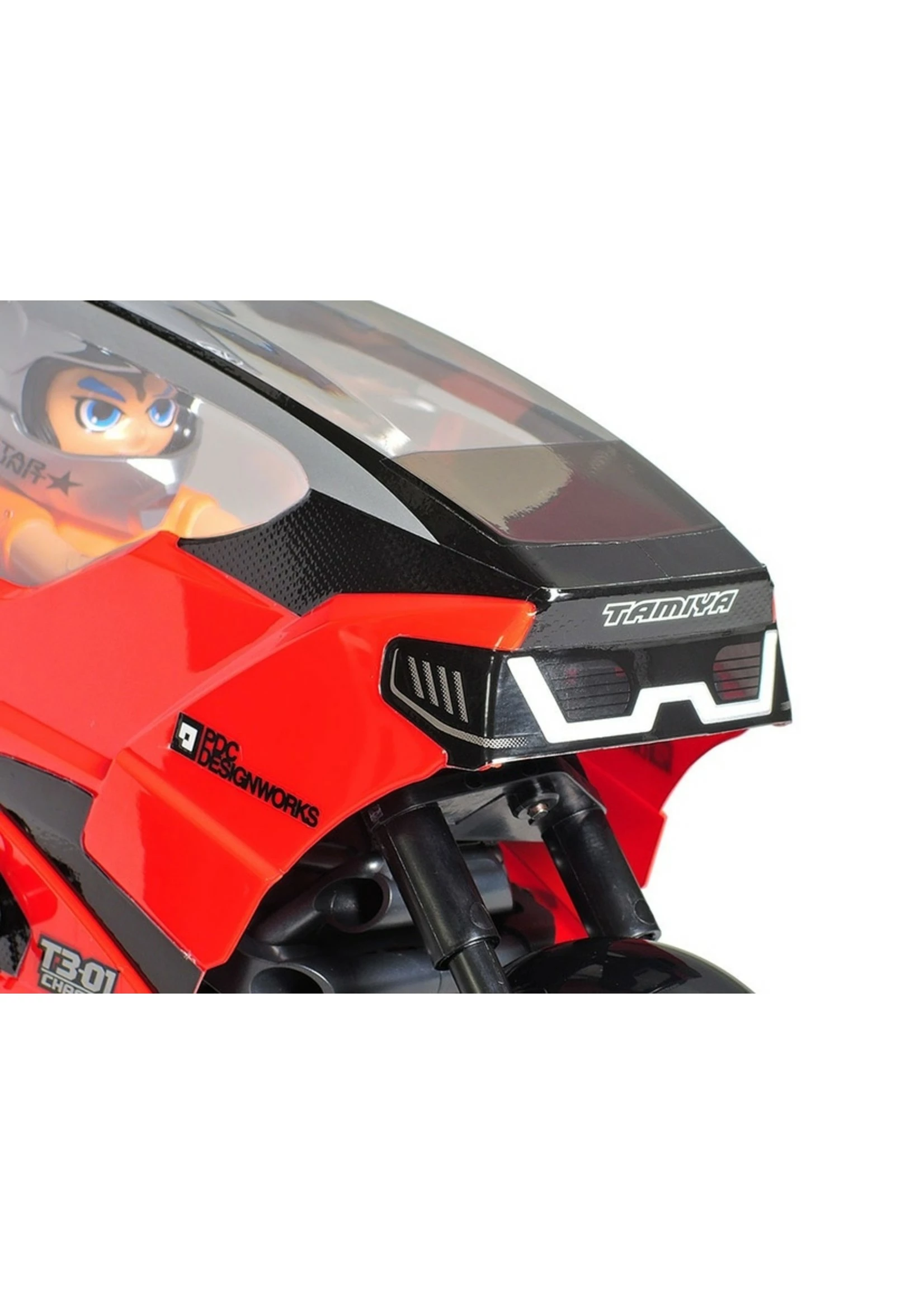

• Brand new 1-piece polycarbonate body features a sleek, blade-like design.
• Features a brand-new driver figure and parts depicting handlebar (and steering wheel). The figure has movable hands (which fit to the bar or steering wheel) and a choice of headgear.

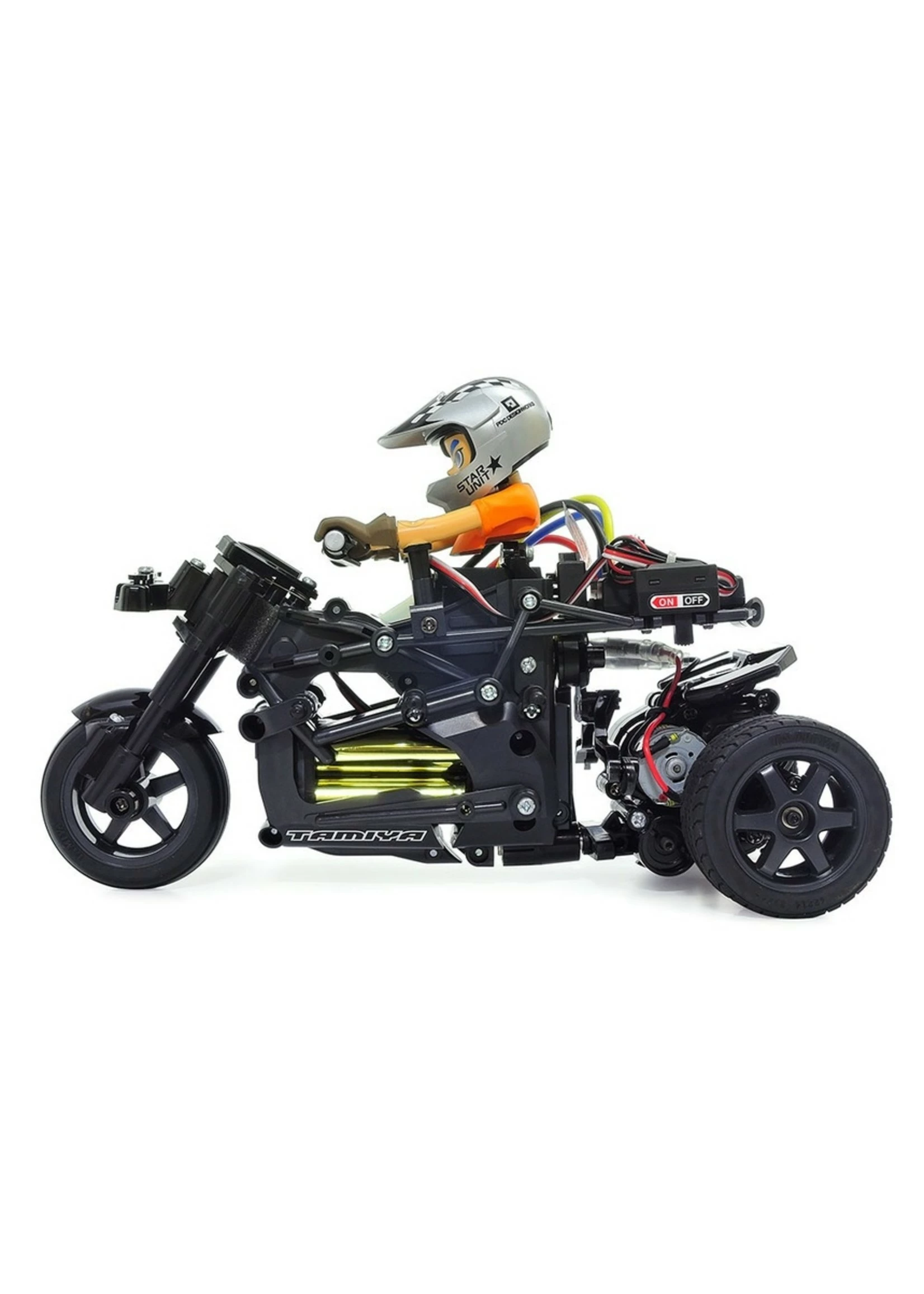

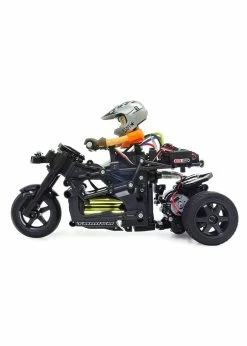

• The T3-01 chassis is comprised of front (with R/C equipment and power source) and rear sections. The servo action tilts the front, causing the model to lean into turns.
• A planetary gear is integrated into the rear axle for smooth power.
• Features telescopic front fork suspension and a rear cam-slide setup, for a smooth ride.
• Support arms move with the steering servo, and help the model right itself if it overturns.
• Type 370-size motor included.
• Note: Battery pack size must be under 66x36x15mm and be square shaped to fit this model.
• Separately sold Item 51610 T3-01 Battery Case allows use of 4 AA batteries to power the chassis.
• Requires: 2-Channel radio, servo, ESC, battery & compatible charger, and Tamiya PS/TS paint.

Specs:

Adjustable Gear Ratio: Fixed
Bearings: Plastic Bushings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Type: T3-01
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 2WD
Electronic Speed Control (esc): Sold Separately
Led Lights: Sold Separately
Motor: Brushed 370 Size
Requires: A 2-Channel Radio, steering servo, ESC, battery pack, and Tamiya PS Spray Paint
Scale: 1:8
Shock Damper: Friction Type
Terrain Use: On-Road



Browse Polycarbonate Paints offered by Tamiya



CHOKING HAZARD — Small parts. Not for children under 3 yrs.
